Light method (Main Control)

C++ Builder example

Delphi example



Builder Syntax

int Light(const TPoint &ptLightCenter, unsigned uLightWidth, unsigned uLightHeight, int nLightAngle, unsigned uLightBright, unsigned uLightEdge, unsigned crLightFill, unsigned uLightOpacity, unsigned uLightFlags, unsigned uLightNo, unsigned uImageBright, unsigned uImageAmbient, unsigned crImageAmbient);

Delphi Syntax

Function Light (ptLightCenter: TPoint; uLightWidth: L_UINT; uLightHeight: L_UINT; nLightAngle: L_INT; uLightBright: L_UINT; uLightEdge: L_UINT; crLightFill: COLORREF; uLightOpacity: L_UINT; uLightFlags: L_UINT; uLightNo: L_UINT; uImageBright: L_UINT; uImageAmbient: L_UINT; crImageAmbient: COLORREF): L_INT;

Overview

Refer to Applying Artistic Effects

Remarks

(Raster Pro and above toolkits) Adds many spots of directed light sources to the bitmap.

This method supports 12 and 16-bit grayscale and 48 and 64-bit color images. Support for 12 and 16-bit grayscale and 48 and 64-bit color images is available only in the Document/Medical toolkits.

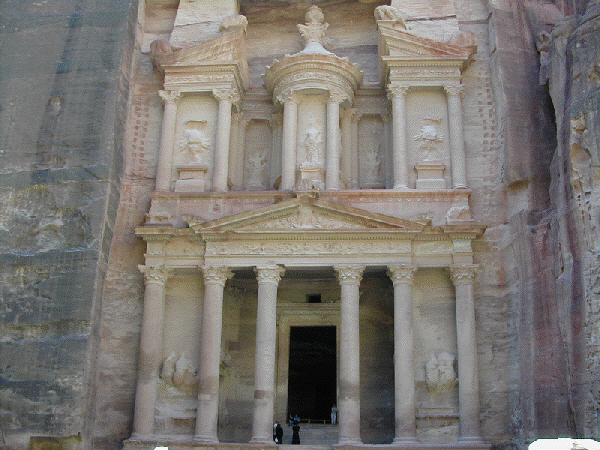

For an example, see the following figure:

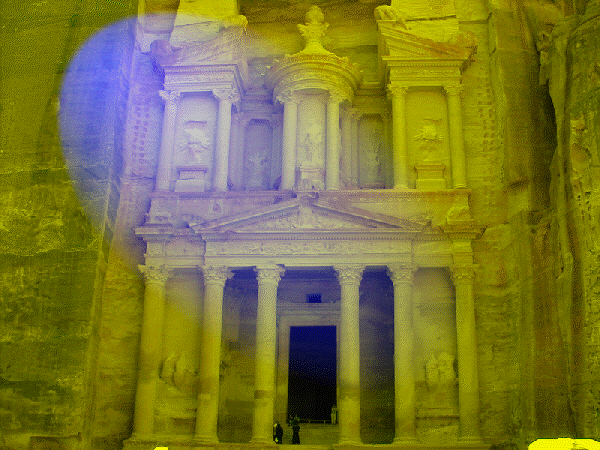

The following figure shows the same bitmap, after the effect has been applied:


To obtain this effect, the following settings were used with the method:

ptLightCenter = (Bitmap->Width/2, Bitmap->Height/2);

   uLightWidth = Bitmap->Width;

   uLightHeight = Bitmap->Width * 4/3;

   nLightAngle = 13500;

   uLightBright = 100;

   uLightEdge = 75;

   crLightFill = RGB(0,0,255);

   uLightOpacity = 100;

   uLightFlags = LGT_SPOTLIGHT;

uLightNo = 1;

uImageBright = 100;

uImageAmbient = 100;

crImageAmbient = RGB(255,255,0);

This method does not support signed data images. It returns the error code ERROR_SIGNED_DATA_NOT_SUPPORTED if a signed data image is passed to this method.
