ShowPosterizeDlg method (LEADDlgColor Control)

C++ Builder example

Delphi 4.0 example



Builder Syntax

int ShowPosterizeDlg(TWinControl* AOwnerCtrl);

Delphi Syntax

Function ShowPosterizeDlg (AOwnerCtrl: TWinControl ): L_INT;

Overview

Refer to Using Imaging Common Dialogs.

Remarks

Displays the Posterize dialog box, and gets the options for the Posterize method.

The layout and action of the dialog depends on the flags set in the DlgFlags property. Possible options are:

Value

Meaning

DLG_POSTERIZE_AUTOPROCESS

[$00000001] Process the image on OK. The LEADImage property must be assigned a Main Control containing a valid bitmap before calling this method.

DLG_POSTERIZE_SHOW_CONTEXTHELP

[$00000002] Dialog should contain a context sensitive help icon.

DLG_POSTERIZE_SHOW_PREVIEW

[$00000004] Show a preview of the image in the dialog. The LEADImage property must be assigned a Main Control containing a valid bitmap before calling this method.

DLG_POSTERIZE_SHOW_TOOL_ZOOMLEVEL

[$00000008] Show the "Zoom to fit" and "Zoom Normal" toolbar buttons. The DLG_POSTERIZE_SHOW_PREVIEW flag must be set in order to show these buttons.

If you include DLG_POSTERIZE_AUTOPROCESS or DLG_POSTERIZE_SHOW_PREVIEW in the DlgFlags property, the LEADImage property must be assigned a Main Control containing a valid bitmap before calling this method.

The following property is associated with this dialog:

Levels property

To include a Help button in the dialog, set the ShowHelpButton property to TRUE.

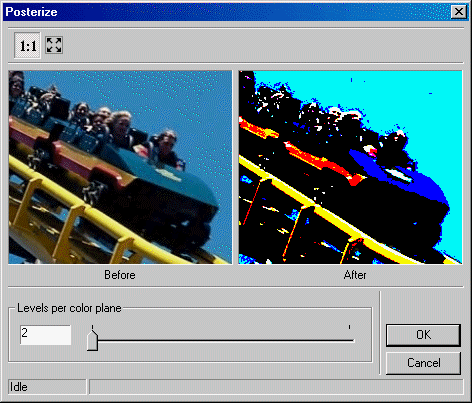

The Posterize dialog can be seen below:


See Also

Elements:

Posterize method, ShowHelpButton property, ZoomToFit Property, DlgFlags property, EnableMethodErrors property.

Topics:

Imaging Common Dialogs: Properties, Methods, and Events
