L_DlgGetDirectory

#include "l_bitmap.h"

L_INT EXT_FUNCTION L_DlgGetDirectory (hWndOwner, pDlgParams)

HWND hWndOwner;

/* owner of dialog */

LPGETDIRECTORYDLGPARAMS pDlgParams;

/* pointer to a structure */

Displays the Get Directory dialog box, and allows the user to browse the file system for a folder/directory.

Parameter

Description

hWndOwner

Handle of the window which owns the dialog.

pDlgParams

Pointer to a GETDIRECTORYDLGPARAMS structure to be updated with the values entered by the user, through the dialog. Set members of this structure, before callng this function, to set the dialog’s initial values.

Returns

SUCCESS_DLG_OK

The "OK" button was pressed, and the dialog exited successfully.

SUCCESS_DLG_CANCEL

The "Cancel" button was pressed, and the dialog exited successfully.

< 1

An error occurred. Refer to Return Codes.

Comments

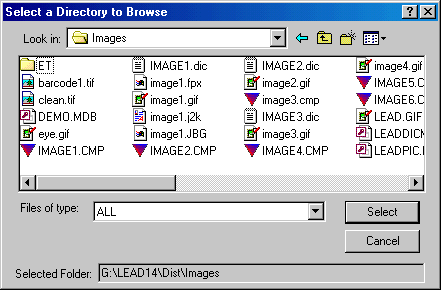

The Get Directory dialog can be seen below:


Required DLLs and Libraries

LTDLGFILE
LTDLGKRN
LTDLGUTL
LTDLGCTRL
LTDLGCOM
LTFIL
LTDIS
LTIMG
LTKRN

For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application

See Also

Functions:

L_DlgInit

Topics:

Dialogs: Maintenance and General Use



Using Imaging Common Dialog

Example

L_VOID ShowDialog ( HWND hWnd )
{
   GETDIRECTORYDLGPARAMS  DlgParams;
   L_TCHAR                 szDirectory [ L_MAXPATH ];


   memset ( &DlgParams, 0, sizeof ( GETDIRECTORYDLGPARAMS ) ) ;

   lstrcpy ( szDirectory, TEXT("C:\\images") ) ;

   DlgParams.uStructSize        = sizeof ( GETDIRECTORYDLGPARAMS ) ;
   DlgParams.pszDirectory = szDirectory ;
   DlgParams.nBuffSize    = L_MAXPATH ;
   DlgParams.pszFilter    = TEXT("ALL\0*.*\0LEAD\0*.cmp\0JPEG\0*.JPG\0");
   DlgParams.nFilterIndex = 1 ;
   DlgParams.pszTitle     = TEXT("Select a Directory Please");

   L_DlgInit ( 0 ) ;
   L_DlgGetDirectory ( hWnd, &DlgParams ) ;
   L_DlgFree ( ) ;
}
