L_DlgEmboss

#include "l_bitmap.h"

L_INT EXT_FUNCTION L_DlgEmboss (hWndOwner, pDlgParams)

HWND hWndOwner;

/* owner of dialog */

LPEMBOSSDLGPARAMS pDlgParams;

/* pointer to a structure */

Displays the Emboss dialog box, and gets the options for L_EmbossBitmap.

Parameter

Description

hWndOwner

Handle of the window which owns the dialog.

pDlgParams

Pointer to an EMBOSSDLGPARAMS structure to be updated with the values entered by the user, through the dialog. Set members of this structure, before calling this function, to set the dialog’s initial values.

Returns

SUCCESS_DLG_OK

The "OK" button was pressed, and the dialog exited successfully.

SUCCESS_DLG_CANCEL

The "Cancel" button was pressed, and the dialog exited successfully.

< 1

An error occurred. Refer to Return Codes.

Comments

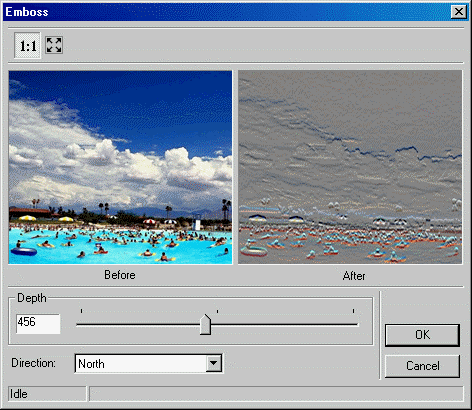

The Emboss dialog can be seen below:


Required DLLs and Libraries

LTDLGIMGEFX
LTDLGKRN
LTDLGUTL
LTDLGCTRL
LTDLGCOM
LTDIS
LTIMG
LTKRN

For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application

See Also

Functions:

L_DlgInit, L_EmbossBitmap

Topics:

Dialogs: Filtering



Using Imaging Common Dialog

Example

L_VOID ShowDialog ( HWND hWnd, pBITMAPHANDLE pBitmap )
{
   EMBOSSDLGPARAMS DlgParams ;

   memset ( &DlgParams, 0, sizeof ( EMBOSSDLGPARAMS ) ) ;

   DlgParams.uStructSize      = sizeof ( EMBOSSDLGPARAMS ) ;
   DlgParams.pBitmap    = pBitmap ;
   DlgParams.uDepth     = 700 ;
   DlgParams.uDirection = EMBOSS_S ;
   DlgParams.uDlgFlags  = DLG_EMBOSS_SHOW_PREVIEW |
                          DLG_EMBOSS_SHOW_TOOL_ZOOMLEVEL ;

   L_DlgInit( 0 ) ;
   L_DlgEmboss ( hWnd, &DlgParams ) ;
   L_DlgFree( ) ;
}
