public class PlasmaCommand : Leadtools.ImageProcessing.RasterCommand, Leadtools.ImageProcessing.IRasterCommand

'Declaration

Public Class PlasmaCommand
   Inherits Leadtools.ImageProcessing.RasterCommand
   Implements Leadtools.ImageProcessing.IRasterCommand

'Usage

Dim instance As PlasmaCommand

public sealed class PlasmaCommand : Leadtools.ImageProcessing.IRasterCommand

function Leadtools.ImageProcessing.SpecialEffects.PlasmaCommand()

public ref class PlasmaCommand : public Leadtools.ImageProcessing.RasterCommand, Leadtools.ImageProcessing.IRasterCommand

As an example, suppose you call the PlasmaCommand method, using an Opacity value of 0, which means that no image is to be used, and you use the following settings:

Parameters	Value
Shift	0
Opacity	0
Size	1000
Flags	Random1 \| Rgb1

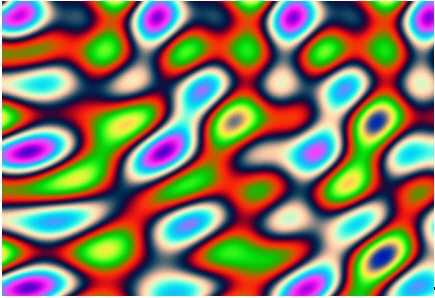

The following figure results:

The Opacity value will always be considered to be 0, unless specified otherwise by a value between (and including) 0 to 100.
Use the RedFrequency, GreenFrequency, and BlueFrequency to create a custom color pattern. To use them, pass the CustomeColor flag to PlasmaCommand. Otherwise, their values will be ignored.
The Hue value is a predefined color pattern that is based on the HLS color space. It creates plasma patterns by changing hue values.
The Rgb1 value is a predefined color pattern that is based on the RGB color space. Different combinations of red, green and blue frequencies produce different results.
Like the Rgb1 value, the Rgb2 value is based on the RGB color space, but uses a different combination of red, green and blue frequencies.

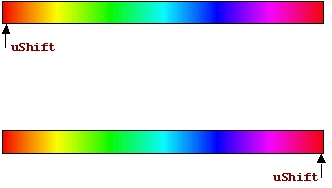

The color palette used for Shift is a continuous cylindrical color palette. In the following figures, one shows where on the palette a value of 0 lies, and the other one shows where on the palette the maximum value lies:
This method supports 12- and 16-bit grayscale and 48- and 64-bit color images. Support for 12- and 16-bit grayscale and 48- and 64-bit color images is available only in the Document/Medical toolkits.
This method does not support signed data images.
This command does not support 32-bit grayscale images.

Visual Basic
C#
WinRT C#
WinRT JavaScript
Silverlight C#
Silverlight VB

Copy Code

Imports Leadtools
Imports Leadtools.Codecs
Imports Leadtools.ImageProcessing.SpecialEffects

Public Sub PlasmaCommandExample()
   Dim codecs As New RasterCodecs()
   codecs.ThrowExceptionsOnInvalidImages = True

   Dim leadImage As RasterImage = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "Master.jpg"))

   ' Prepare the command
   Dim command As New PlasmaCommand

   ' Draw crossed plasma colors of size 10 over the current image, use Rgb1 predefined
   ' color pattern without any shifting, and blend the effect into the current image
   ' with opacity of 80%
   command.Flags = PlasmaCommandFlags.Rgb1 Or PlasmaCommandFlags.Cross
   command.Opacity = 80
   command.Size = 1000
   command.Shift = 0
   command.Run(leadImage)
   codecs.Save(leadImage, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24)

End Sub

Public NotInheritable Class LEAD_VARS
Public Const ImagesDir As String = "C:\Users\Public\Documents\LEADTOOLS Images"
End Class

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.SpecialEffects;

public void PlasmaCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "Master.jpg"));

   // Prepare the command
   PlasmaCommand command = new PlasmaCommand();

   // Draw crossed plasma colors of size 10 over the current image, use Rgb1 predefined
   // color pattern without any shifting, and blend the effect into the current image
   // with opacity of 80%
   command.Flags = PlasmaCommandFlags.Rgb1 | PlasmaCommandFlags.Cross;
   command.Opacity = 80;
   command.Size = 1000;
   command.Shift = 0;
   command.Run(image);
   codecs.Save(image, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24);

}

static class LEAD_VARS
{
public const string ImagesDir = @"C:\Users\Public\Documents\LEADTOOLS Images";
}

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.SpecialEffects;

[TestMethod]
public async Task PlasmaCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;
   string srcFileName = @"Assets\Image1.cmp";
   StorageFile loadFile = await Tools.AppInstallFolder.GetFileAsync(srcFileName);
   RasterImage image = await codecs.LoadAsync(LeadStreamFactory.Create(loadFile));

   // Prepare the command
   PlasmaCommand command = new PlasmaCommand();

   // Draw crossed plasma colors of size 10 over the current image, use Rgb1 predefined
   // color pattern without any shifting, and blend the effect into the current image
   // with opacity of 80%
   command.Flags = PlasmaCommandFlags.Rgb1 | PlasmaCommandFlags.Cross;
   command.Opacity = 80;
   command.Size = 1000;
   command.Shift = 0;
   command.Run(image);

   string destFileName = @"result.bmp";
   StorageFile saveFile = await Tools.AppLocalFolder.CreateFileAsync(destFileName);
   await codecs.SaveAsync(image, LeadStreamFactory.Create(saveFile), RasterImageFormat.Bmp, 24);
}
