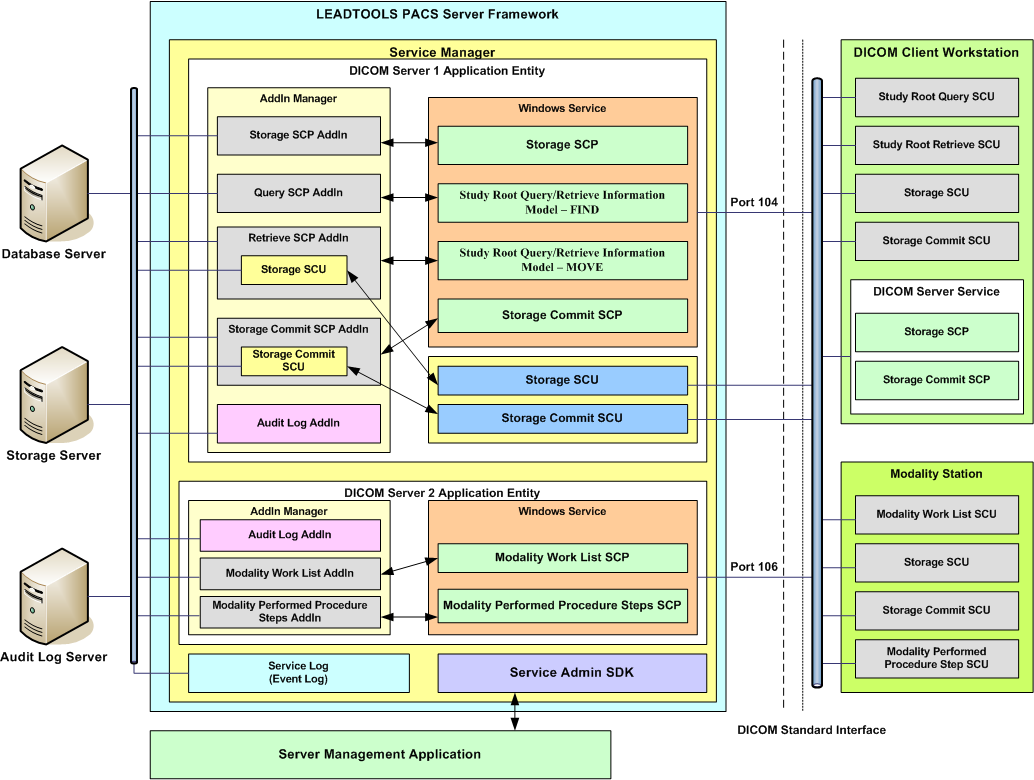

The following diagram shows the PACS Framework:

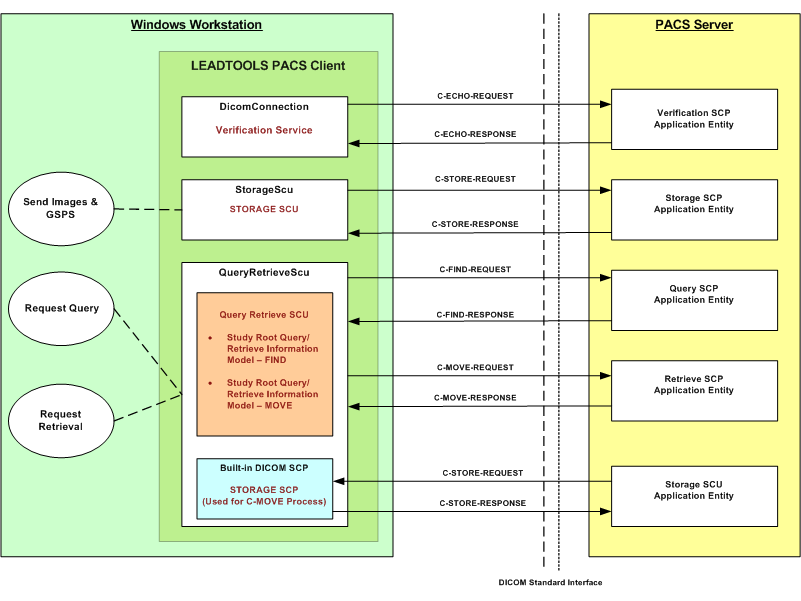

The following diagram shows how the Leadtools.Dicom.Scu interacts with a PACS server:

Supported Environments

The module comes in Win32 and x64 editions that can support development of software applications for any of the following environments:

• Windows Vista
• Windows XP
• Windows 2000

System Requirements

In order to use the PACS Framework you will need the following components:

• .NET Framework 3.5
• Microsoft Unity 1.1

In addition, to run and compile the samples you need the following applications:

• Visual Studio 2005
• SQL Compact Edition 3.5

In addition to the above requirements, the logging addin requires the following application:

• Microsoft Enterprise Library Logging 4.0
