LEAD AAC Encoder User Interface

The LEAD AAC Encoder Also known as compressor, this is a module or algorithm to compress data. Playing that data back requires a decompressor, or decoder. Encoder implements Advanced Audio Coding (AAC), a new high quality compression standard used with MPEG4 or H264 ISO MP4 files. AAC is also the audio format that is used by iPod and PSP.

Key features of the LEAD AAC Encoder:

Options for the LEAD AAC Encoder can be set manually through the encoder property page, which is shown in the figure below:

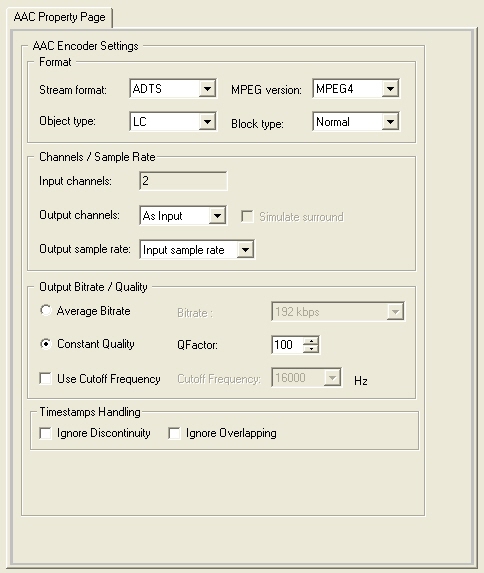

LEAD AAC Encoder property page



Changes will be applied only when the filter's state is stopped with the ability to set them permanently by selecting Apply or OK, or to abandon changes by selecting Cancel. Positioning the mouse pointer over a control displays general information for that control.

The following table shows the controls and their descriptions:



Control

Description

The Format group



Stream format drop-down list box

The format of the output stream. Selecting “Raw” will cause the “MPEG Version” drop-down list box contents to be restricted to “MPEG4” only.

MPEG version drop-down list box

The AAC audio MPEG version. If MPEG2 is selected, only LC and MAIN object types will be listed in the “Object type” drop-down list box.

Object type drop-down list box

The AAC profile used. LC stands for Low Complexity; this option requires lower CPU and Memory resources. The MAIN profile offers more efficiency on the expense of more resources.

The Long Term Prediction profile, LTP, is suitable for speech and signals with clear pitch property. The LTP option can be used with MPEG4 AAC only; “MPEG4” must be selected in the “MPEG4 Version” drop-down list box.

Block type drop-down list box

The allowed block type; data window length. The long block is usually 1024 samples, while the short block is usually 128 samples. “Normal” means both blocks are allowed.

The Channels / Sample Rate group



Input channels text box

Shows the number of input audio channels. If the input pin is not connected, the box will contain the text “Unknown”.

Output channels drop-down list box

The number of output channels. You can select between, mono, stereo, 6 channels, or you can leave the output channels the same as the input channels. If “6 channels” is selected, the “Simulate surround” check box will be enabled.

Simulate surround check box

Enables\disables surround feature simulation. It will simulate surround sound on 5.1 systems from a stereo or mono source.

This check box will be enabled only if the “Output channels” drop-down list box has “6 channels” selected.

Output sample rate drop-down list box

The desired output sample rate (samples per second).

The Output Bitrate / Quality group



Average Bitrate (radio button and drop-down list box)

You can select between “Average BitRate” and “Constant Quality”. If the “Average BitRate” radio button is selected, the “Bitrate” drop-down list box next to it will be enabled and you can select one of the predefined bitrates.

Constant Quality (radio button and spin)

You can select between “Average BitRate” and “Constant Quality”. If the “Constant Quality” radio button is selected, the “QFactor” spin next to it will be enabled and you can select the desired quality factor.

Cutoff frequency (check box and drop-down list box)

The “Use Cutoff Frequency” check box enables or disables the usage of cutoff frequency. If the box is selected, the “Cutoff Frequency” combo box next to it will be enabled and you can select one of the predefined frequencies.

Timestamps handling



Ignore Discontinuity check box

If selected, this option will cause the encoder to ignore discontinuities in the timestamps (time gaps) of the incoming audio samples. Sometimes this is needed to work around audio source timing problems.

Ignore Overlapping check box

If selected, this option will cause the encoder to ignore overlapping in the timestamps of the incoming audio samples. Sometimes this is needed to work around audio source timing problems.
