LEAD MPEG Audio Decoder User Interface

The LEAD MPEG Audio Decoder Also known as a decompressor Also known as a decoder, this is a module or algorithm to decompress data., this is a module or algorithm to decompress data. property page provides a user interface for changing the filter's attributes.

Changes will be applied only when filters state is stopped with the ability to set them permanently by clicking Apply or OK, or abandoning them by clicking Cancel. Positioning the mouse pointer over a control displays the general information for that control. The property page is shown in figure 1.

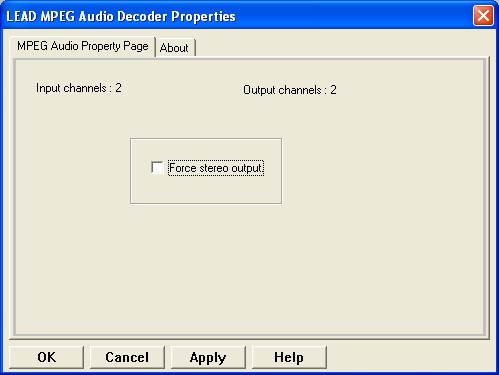

Figure 1. LEAD MPEG Audio Decoder Properties



The following table shows the controls and their descriptions:



Control

Description

Input and Output Channels text boxes

Displays the number of input and output audio channels. If the pin is not connected, the box will contain the text Unknown.

Force stereo output check box

If selected, forces the number of output channels to 2.
